AMBIENTE decupaj drept

  • Structurare discretă a suprafețelor mari de acoperiș
  • Diversitatea diferitelor forme ale secțiunii permite realizarea imaginativă a acoperișului la cel mai înalt nivel
  • Realizarea acoperișului în stil modern, elegant, peisagistic sau futurist
  • Îmbinarea tradiției și modernității
roşu natur
roşu natur
NUANCE roşu cupru angoba
NUANCE roşu cupru angoba

Technical data

Mărime (aprox.)180 x 380 x 14 mm
Lăţime de acoperire max. (aprox)180 mm
Lungime acoperire medie aprox.155 mm
Dist. max. şipci (aprox.)165 mm
Dist. min. şipci (aprox.)145 mm
Necesar mediu de ţigle (aprox.)36 pcs/m²
greutate per m² (aprox.)68.4 kg/m²
greutate per pallet (aprox.)979 kg
Greutate/unitate de produs - buc. (aprox.)1.9 kg/piece
Buc per palet480 Unit
Buc. per mini-pack8 piece

Area of use

Unghi versant acoperiş DUO durabil ND extra (Germania)≥ 22 °
Unghi versant acoperiş QUATTRO durabil extra (Austria)≥ 10 °
Unghi versant acoperiş TRIO durabil extra (Germania)≥ 18 °
Unghi versant acoperiş DUO extra (Germania)≥ 25 °
Unghi versant acoperiş DUO extra (Austria)≥ 25 °

Technical informations

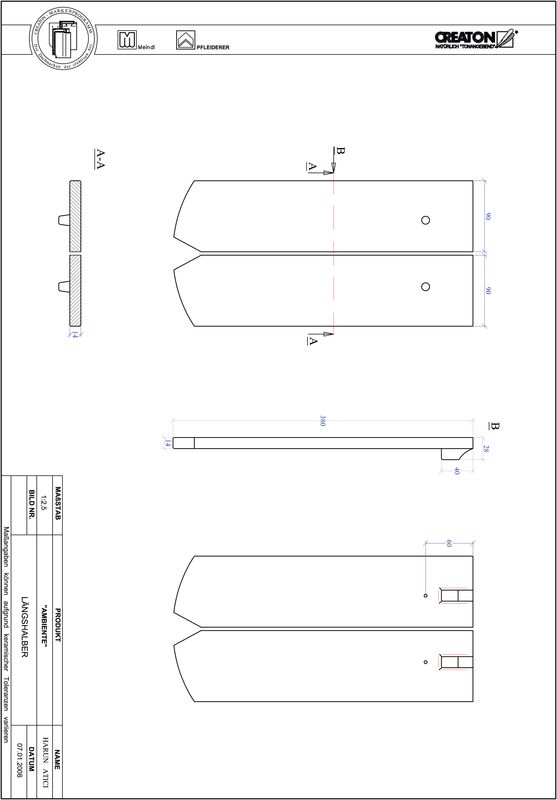

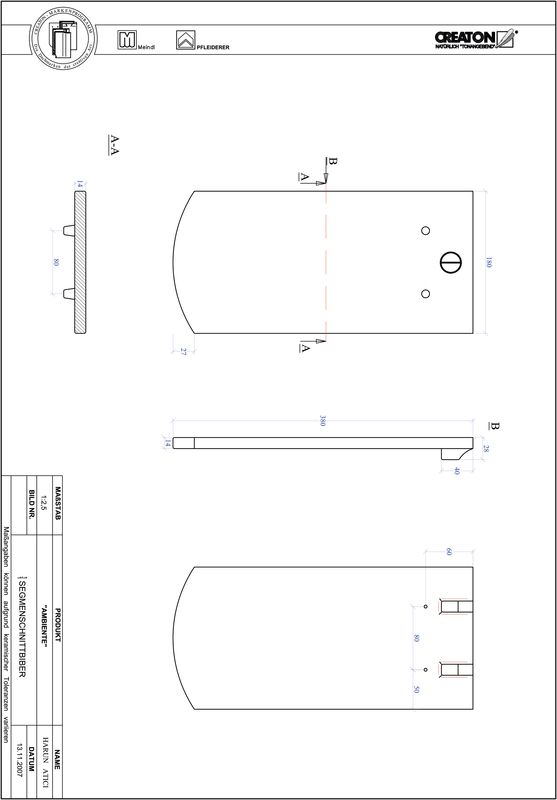

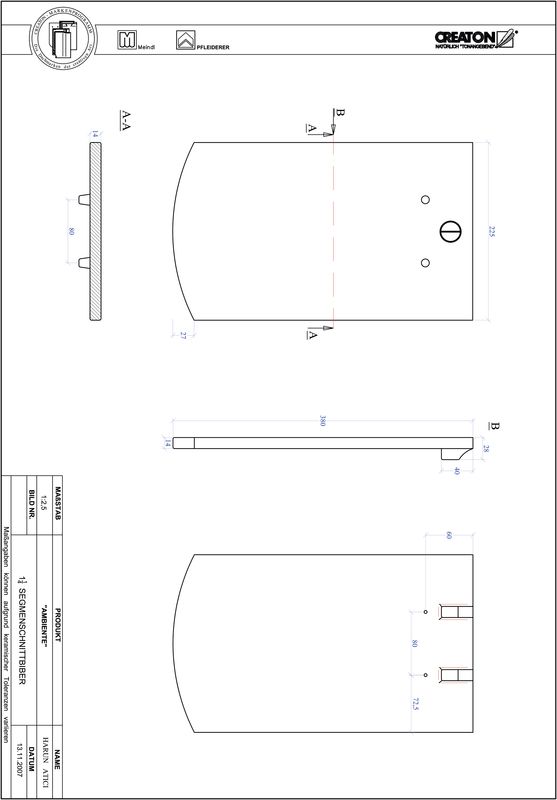

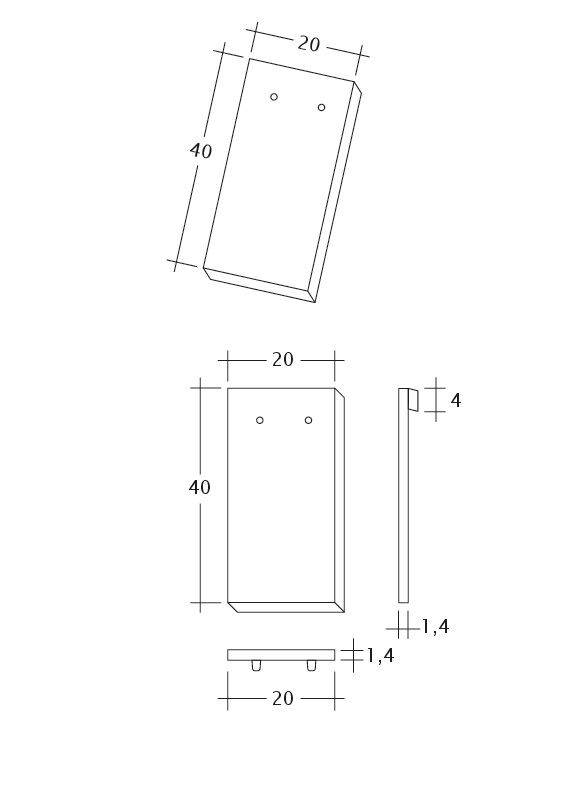

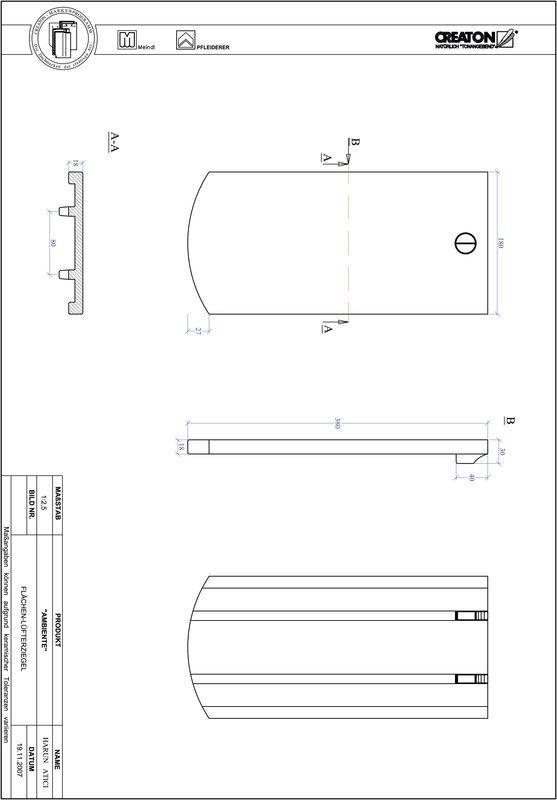

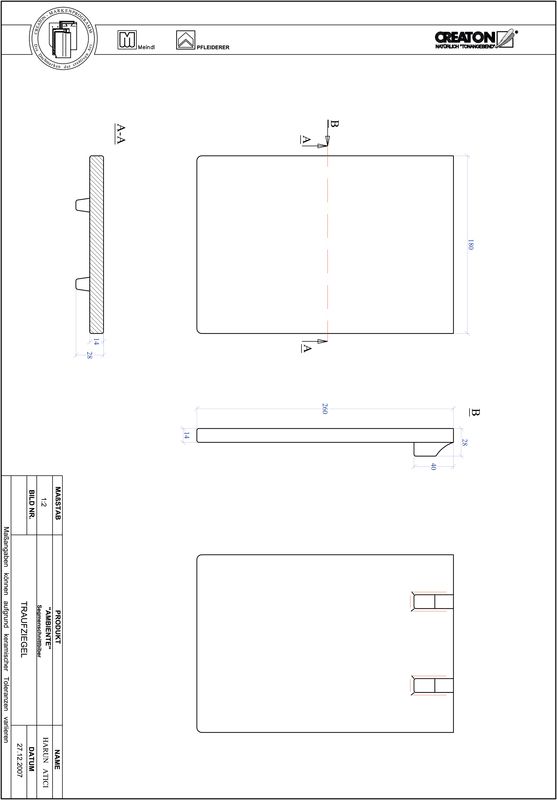

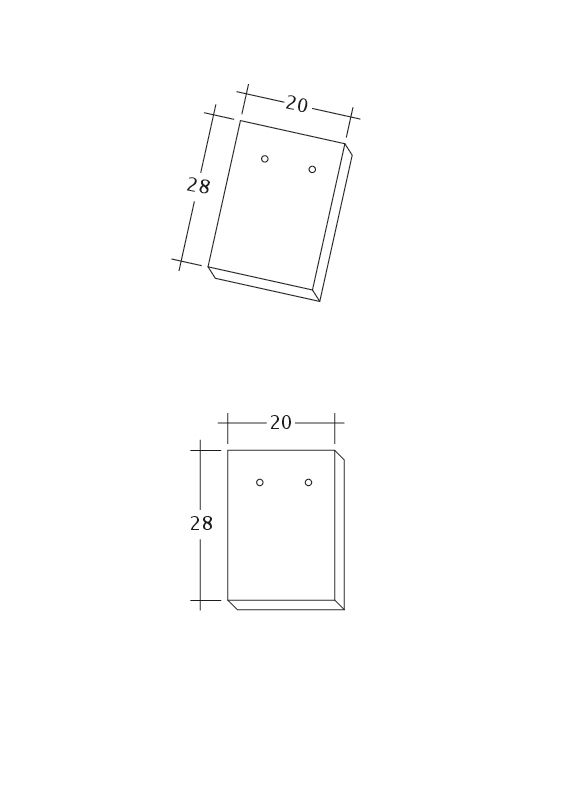

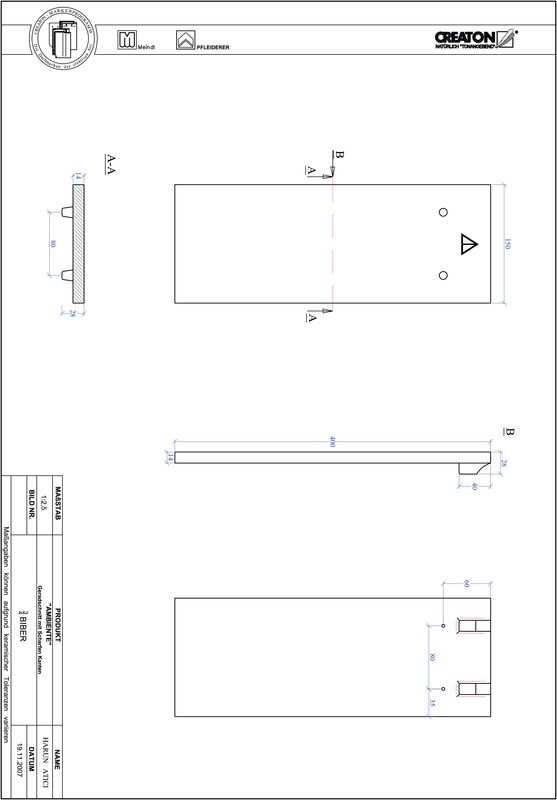

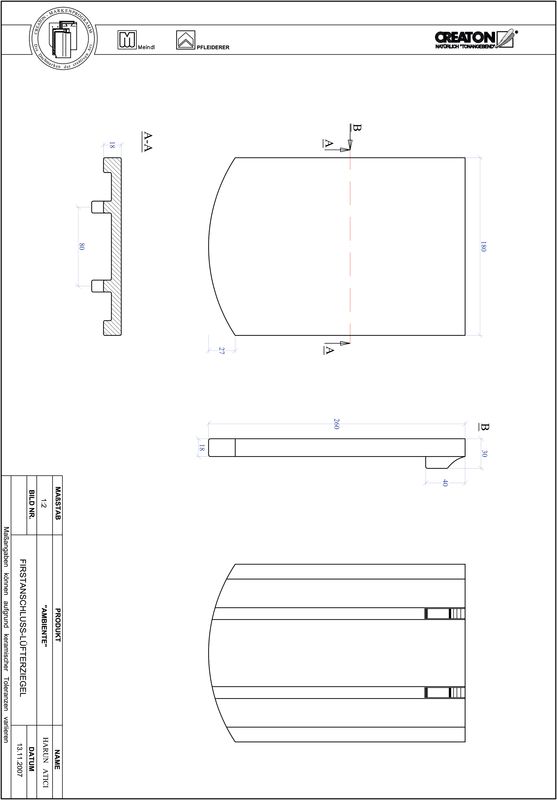

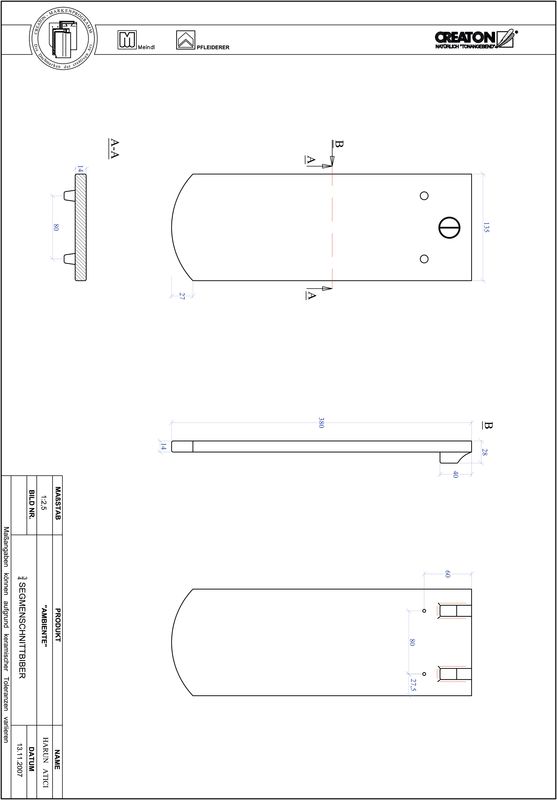

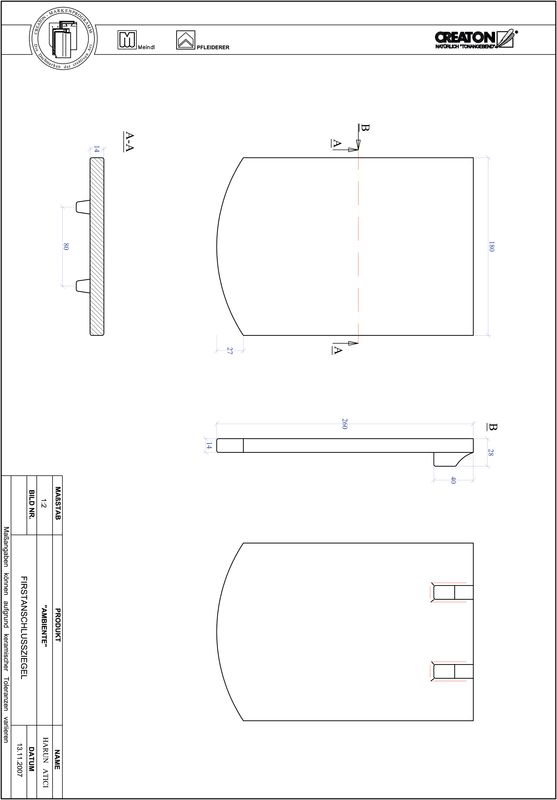

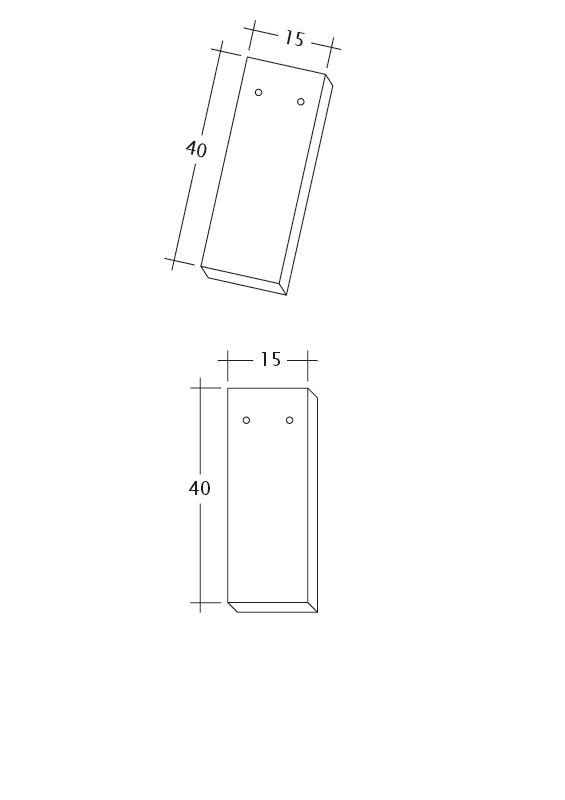

  • The technical drawing shown is merely an example.

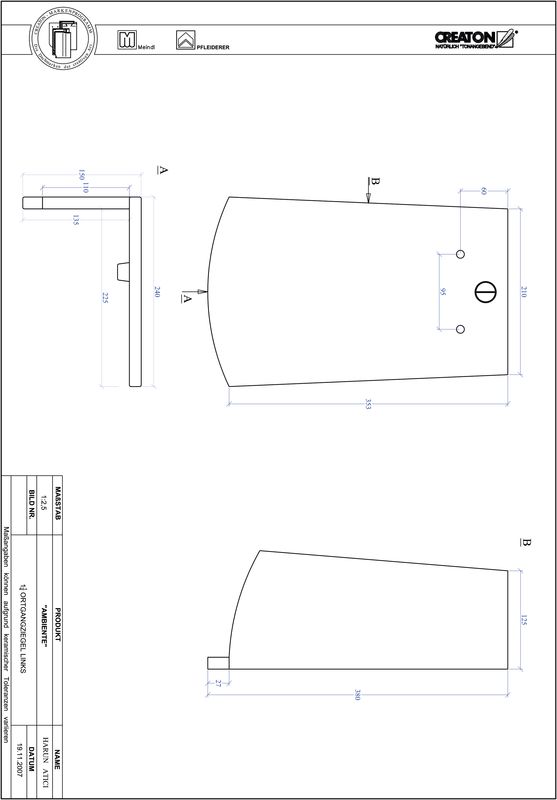

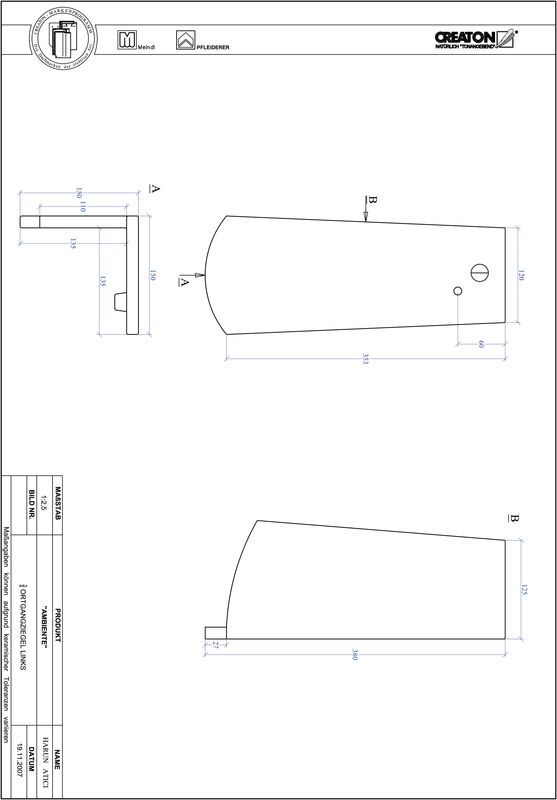

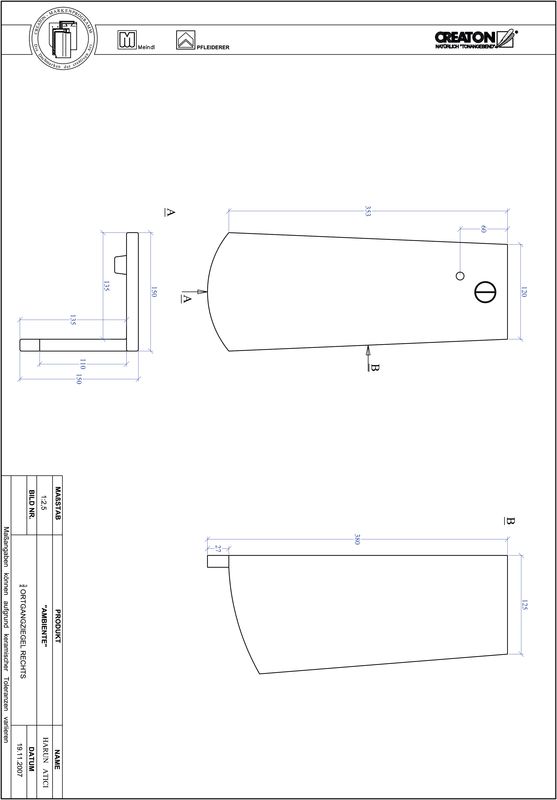

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at /
